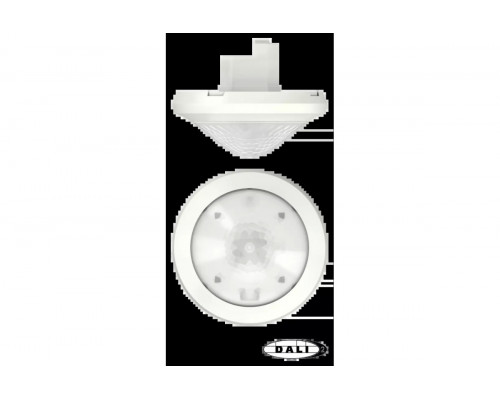

theRonda S360 DALI-2 S UP WH

Function description

• Passive infra-red presence sensor for flush-mounted ceiling installation, DALI-2 certified
• Circular detection area 360°, Ø 8 m, (50 m²) at mounting height 3 m
• This device provides information about presence and brightness in the form of a DALI telegram in line with IEC 62386 Part 303/304
• Area restriction with cover clips (optional)
• 1 instance for presence
• Mixed light measurement
• 1 instance for brightness
• Easy to calibrate brightness measurement
• Test mode for checking function and detection area
• Configurable detection sensitivity
