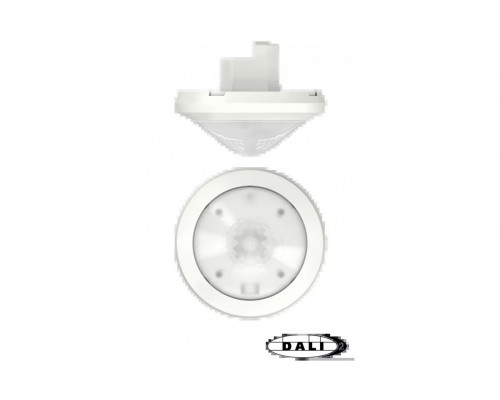

thePassa P360 DALI-2 S UP WH

Function description

• Passive infra-red presence sensor for flush-mounted ceiling installation, DALI-2 certified
• Rectangular detection area 360°, 30 x 4,5 m, (135 m²) at mounting height 3 m, for corridors and storage areas, with 2 individually connectable and disconnectable detection zones
• This device provides information about presence and brightness in the form of a DALI telegram in line with IEC 62386 Part 303/304
• 3 instances for presence – detection area zone 1 + 2 / zone 1 / zone 2
• 2 mixed light measurements
• 3 instances for brightness – detection area zone 1 + 2 / zone 1 / zone 2
• Easy to calibrate brightness measurement
• Test mode for checking function and detection area
• Configurable detection sensitivity
• Can be configured via DALI bus or remote control
