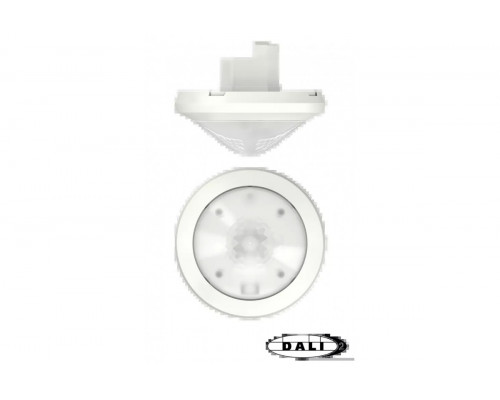

thePassa P360-221 DALI UP WH

Function description

• Passive infra-red presence detector for flush-mounted ceiling installation, DALI-2 certified
• Rectangular detection area 360°, 30 x 4,5 m, (135 m²) at mounting height 3 m, for corridors and storage areas, with 2 individually connectable and disconnectable detection zones
• 2 channels light DALI-2 addressable or 1 chanel light DALI-2 in broadcast mode
• DALI-2 technology according to IEC 62386 Parts 101 and 103
• Flexible assignment of up to 2 light groups towards one DALI line
• Easy, intuitive configuration of the DALI groups
• Up to 2 push-button inputs
• Using of conventional push-buttons for maximum design freedom
• Switch or constant light control mode with stand-by function
• Dimmable lighting in switch mode with stand-by function
