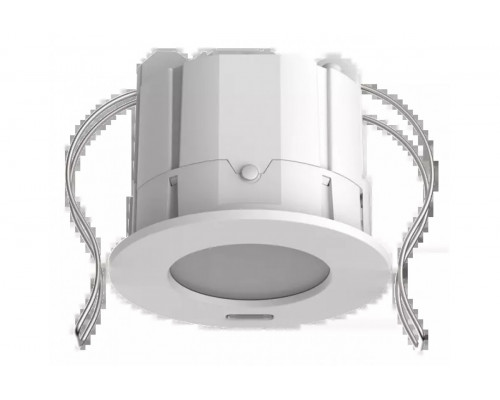

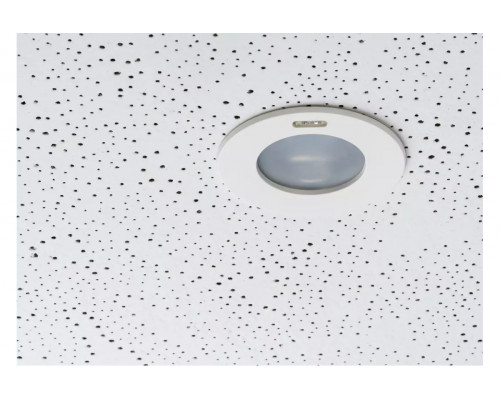

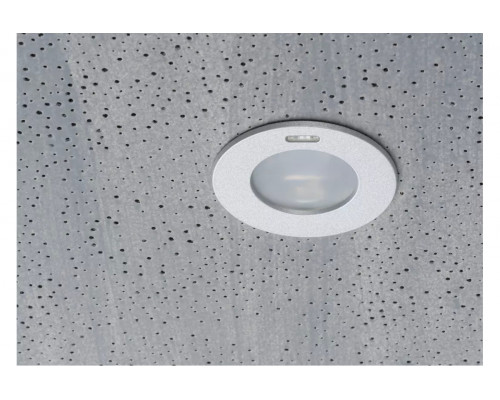

PlanoSpot 360 KNX DE WH

Function description

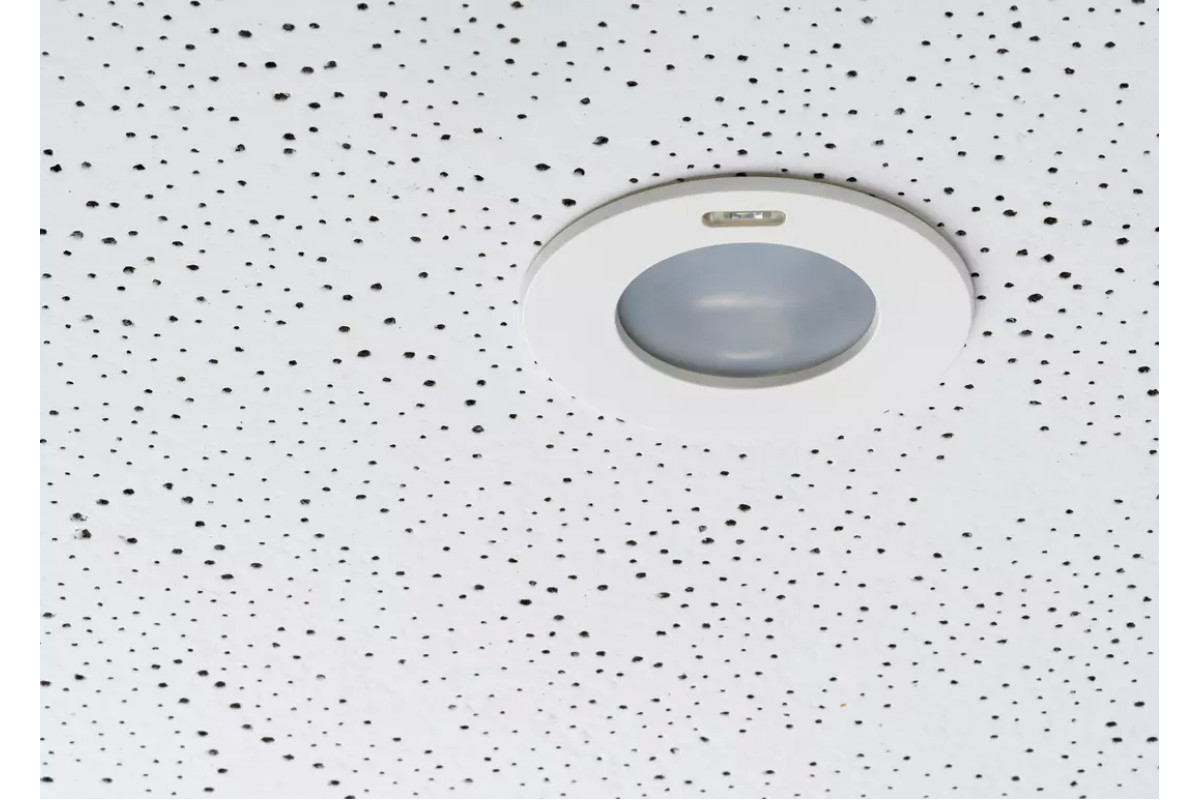

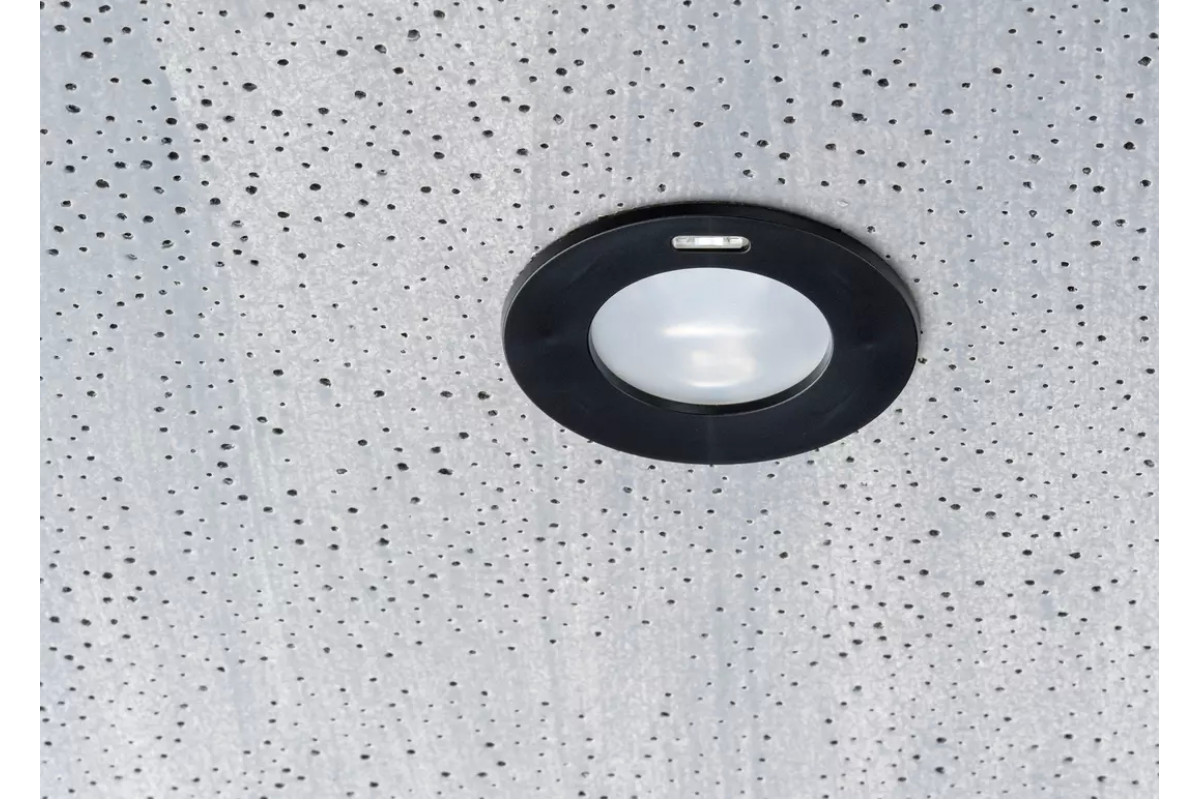

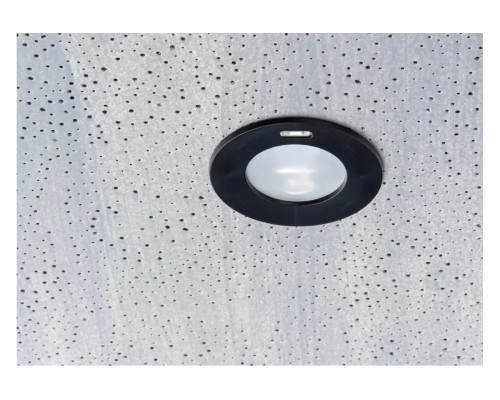

• Passive infra-red presence detector KNX for ceiling installation in false ceilings
• Square detection area 360°, 7 x 7 m, (49 m²) at mounting height 3 m
• 3 channels light and 2 channels presence
• Automatic presence- and brightness-dependent control for lighting and HVAC
• Two differently sized detection zones for greater flexibility. Adjustable via parameters or remote control.
• Manual alignment of the detection area (swivel mechanism)
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
• 3 directed light measurements
• 2 light channels C1, C2 with 2 light measurements and additional lighting channel C3 without brightness factor
• Switched or constant light control with 2 independent control systems and standby function (orientation light)
