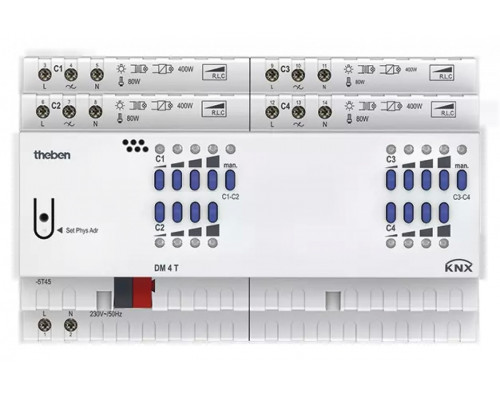

DM 4 T KNX

Function description

• 4-way universal dimmer actuator FIX2
• For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
• Also suitable for dimming of dimmable energy-saving lamps
• Also suitable for controlling fans
• LED switching status display for each channel
• Manual operation on device (even without bus connection)

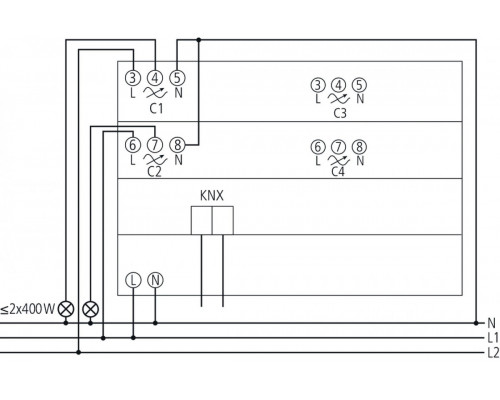

• Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation

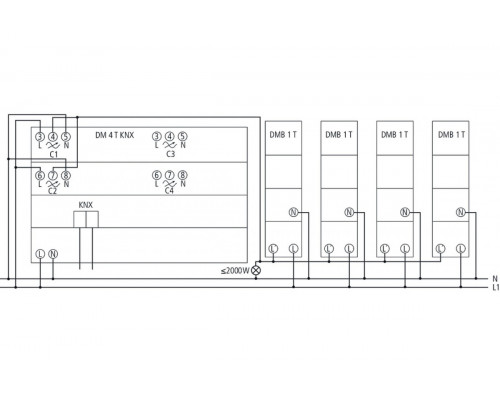

• The dimming output can be upgraded by using additional dimmboosters "DMB 1 T KNX" - dimming output 300 W/VA for each dimmbooster. Output to a maximum of 2000 W/VA by using max. 4 boosters possible
• Automatic load detection (can be deactivated)
• For R, L and C loads
