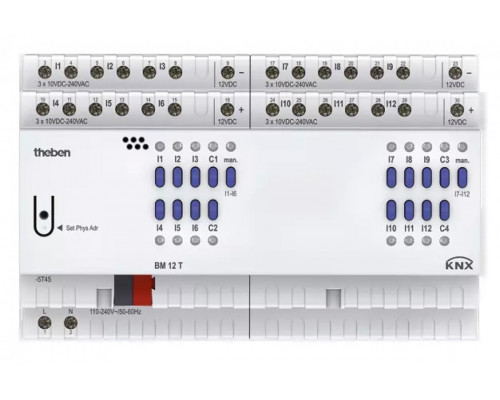

BM 12 T KNX

Function description

• 12-way binary input FIX2
• 12 floating universal and wide-range voltage inputs (10-240 V AC/DC or internally generated auxiliary voltage of approx. 12 V DC)
• 4 additional channels operable by buttons on the device, but without input
• LED switching status display for each channel
• Manual operation on device (even without bus connection)
• Manual operation per channel for simulating the input states
• All inputs can be operated with different voltages and at different potentials
• Connectable cable length up to 100 m
• Free allocation of functions: switch/push button, dimming, blinds/roller blinds, counter, repeat telegram, sequences
