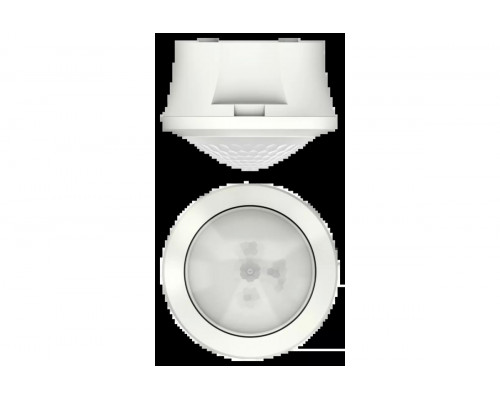

theRonda S360-101 AP WH

Function description

• Passive infra-red presence detector for ceiling installation
• Circular detection area 360°, up to Ø 8 m (50 m²) at mounting height 3 m

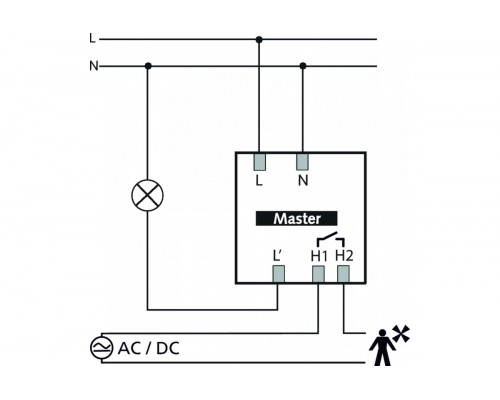

• 1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control)
• Automatic motion and brightness-dependent control for lighting and HVAC
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
• Operation as fully automatic device
• Brightness switching value configurable, teach-in function
• Pulse function for staircase light time switch
• Channel H, presence: relay, floating e.g. for HVAC control
• Time delay configurable
