thePiccola P360-100 DE WH

Function description

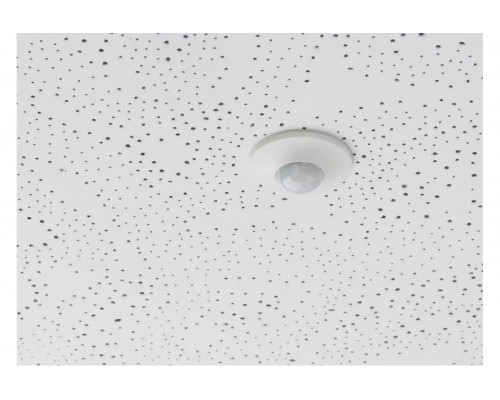

• Passive infra-red presence detector for ceiling installation in false ceilings
• Circular detection area 360°, up to Ø 8 m (50 m²) at mounting height 2.5 m
• 1 channel light (Relay, 230 V)
• Automatic presence- and brightness-dependent control for lighting
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
• Channel A light: relay, 230 V
• Choice of fully or semi-automatic operation
• Brightness switching value configurable, teach-in function
• Pulse function for staircase light time switch
• Time delay configurable
